Dwyer, Series TTE
Explosion-Proof RTD Temperature Transmitter

Dwyer, Series TTE

Explosion-Proof RTD Temperature Transmitter

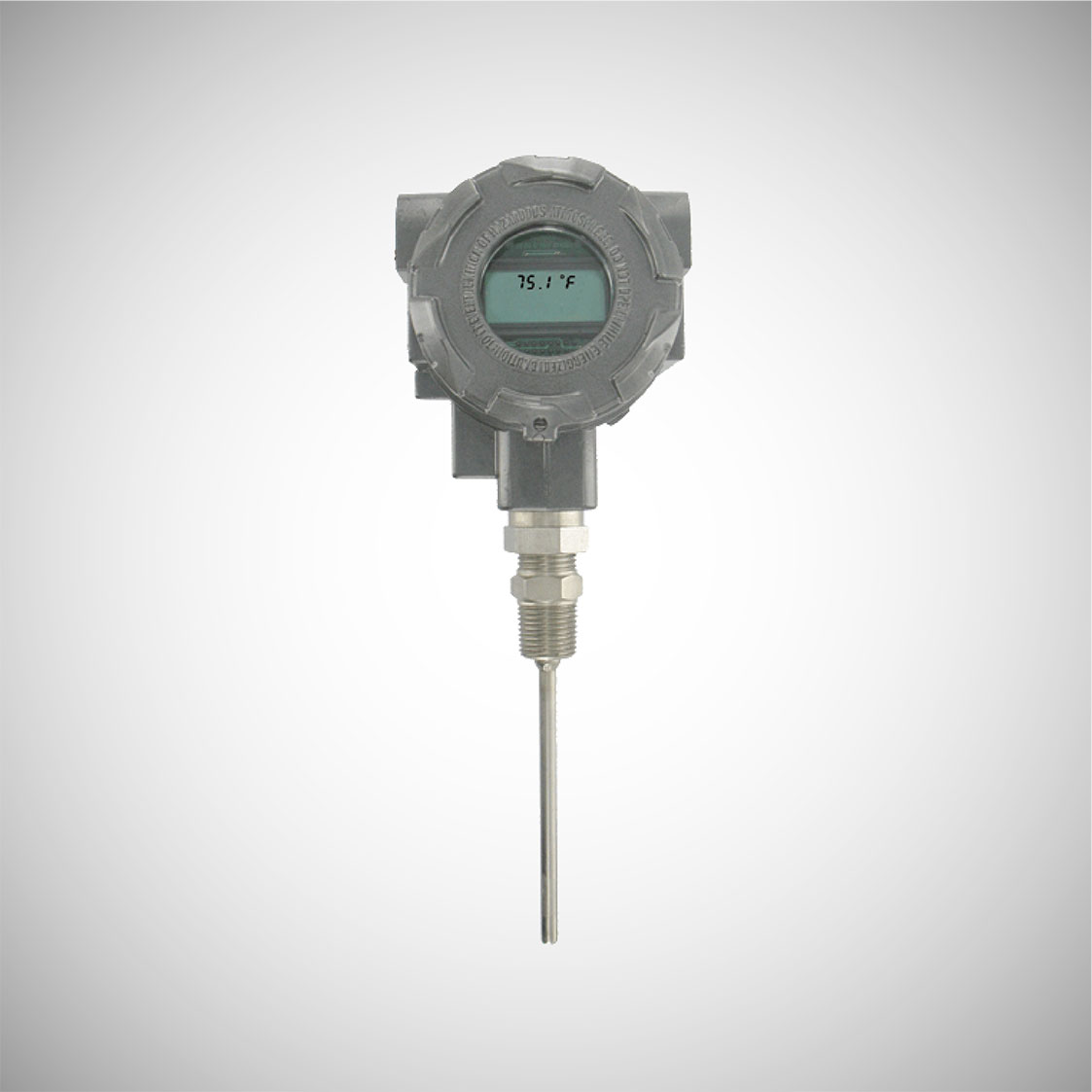

The Series TTE Explosion-Proof RTD Temperature Transmitter is the ideal product for hazardous temperature measurement applications. The TTE series has seven preprogrammed temperature ranges that are selectable via an internal dip switch. For those applications that need a custom range, the transmitter can be easily configured for any range between -30 to 250°F with a minimum span of 40°F. The span and zero can be quickly adjusted with a simple push button design. This unit has optional listings of FM for use in Class I, Division 1, Groups B, C and D, Class II, Division 1, Groups E, F and G and Class III atmospheres or ATEX (Directive 2014/34/EU) for 2813 II 2 G Ex db IIC T6…T4 Gb (-20°C ≤ Ta ≤ + 70°C), 2813 II 1 D Ex ta IIIC T111°C Da (-20°C ≤ Ta = + 70°C) and IECEx for Ex db IIC T6…T4 Gb (-20°C ≤ Ta ≤ + 70°C), Ex ta IIIC T111°C Da (-20°C ≤ Ta ≤ + 70°C). The compact housing allows for the transmitter to be mounted in virtually any application.
